OceanStor Dorado 3000 V6, Dorado 5000 V6, and Dorado 6000 V6 storage systems are Huawei’s brand-new all-flash storage products designed for medium- and large-size enterprise storage environments. The storage systems leverage the flash-dedicated FlashLink® technique to provide mass data storage, fast data access, high availability, and excellent utilization in the ease-of-use and energy saving form factor.
OceanStor Dorado 3000 V6, Dorado 5000 V6, and Dorado 6000 V6 storage systems offer comprehensive and superb solutions by using diverse efficiency boost mechanisms to provide industry-leading performance. Those solutions help customers maximize their return on investment (ROI) and meet the requirements of different application scenarios such as online transaction processing (OLTP), online analytical processing (OLAP), high-performance computing (HPC), server virtualization, and virtual desktop infrastructure (VDI).
In addition to providing enterprise users with high-performance and efficient storage services, OceanStor Dorado 3000 V6, Dorado 5000 V6, and Dorado 6000 V6 storage systems support advanced data backup and disaster recovery technologies, ensuring secure and smooth operation of data services. Furthermore, the storage systems also offer easy-to-use management and convenient local/remote maintenance, greatly decreasing the management and maintenance costs.

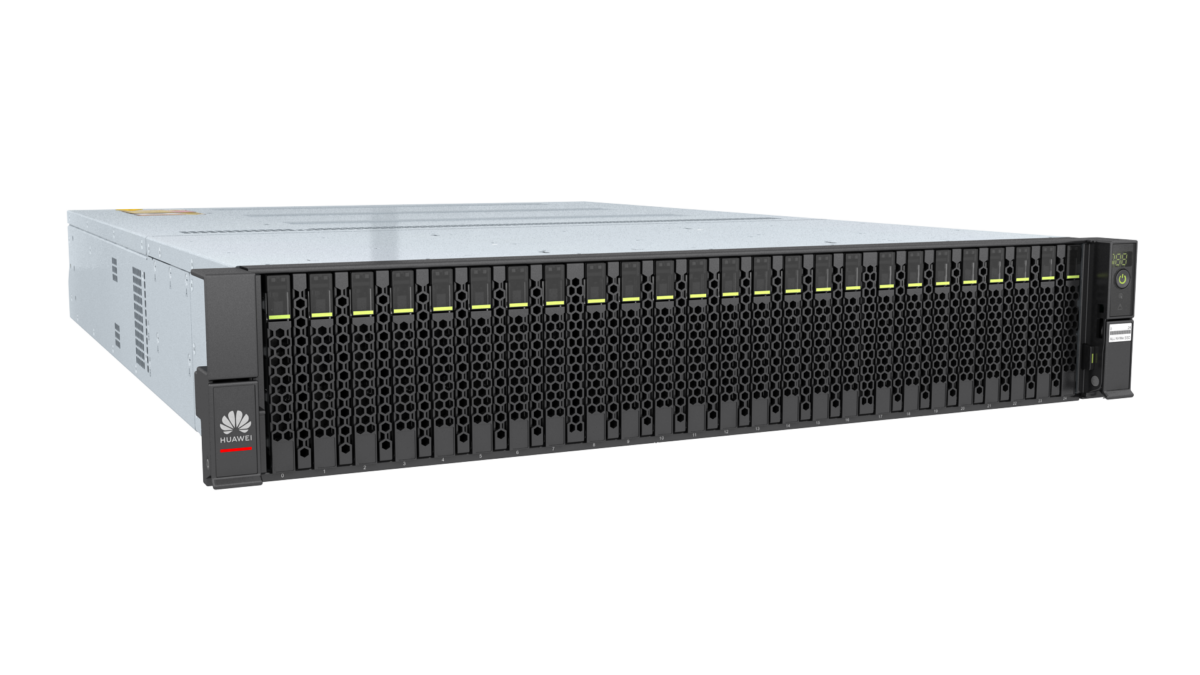

Device architecture: 2 U controller enclosure with integrated disks (25 disk slots)
Maximum number of controllers per enclosure: 2
Maximum number of controllers: 16 controllers
Maximum number of SSDs for the entire system: 1200
Maximum dual-controller bandwidth (MB/s): 8600
Maximum dual-controller IOPS (IOPS@1 ms): 160000
Dimensions: 2 U controller enclosure with integrated disks (25 disk slots) 86.1 x 447 x 620 mm
Mounting: Cabinet with a depth greater than or equal to 800 mm
Weight: 31.35 kg
CPU: Kunpeng 920
Frequency: Up to 2.6 GHz
Number of cores: 32
ethernet_interface: GE, 40GE, 100GE
storage_type: NVMe or SAS
Operating temperature: 5°C to 35°C
Storage humidity: –40°C to +70°C
storage_humidity: 5% RH to 95% RH
lan: GE 25 Gbit/s RDMA 40GE 100GE SmartIO 12 Gbit/s SAS
Warranty: 1 Years
Huawei OceanStor Dorado 3000 All-Flash Storage System Data Sheet
